The role of control cabinets and switchgear in modern railways – applications, types and functions

Under conditions of high electrical loads, continuous mechanical vibration and extreme temperatures, reliability depends on the precision of every detail. Control cabinets and switchgear are at the heart of railway power supply systems, rolling stock and rail automation. Find out how proper assembly, advanced copper and aluminium conductors and professional cabinet prefabrication contribute to safety and continuity in rail operations.

Modern railways and the need for reliability and automation

Modern rail transport places exceptionally demanding requirements on both infrastructure and rolling stock in terms of safety and operational continuity. A failure of a single component within an electrical node may lead not only to costly delays, but above all to a real threat to rail traffic and passenger safety.

For this reason, railway signalling and control systems as well as advanced power distribution play a crucial role in modern railways. At the centre of these systems are professionally designed and assembled electrical switchgear and control cabinets.

They act as both a management hub and a secure enclosure for critical electrical and electronic components, protecting them against moisture, changing temperatures and vibration while also allowing efficient diagnostics and servicing.

Switchgear and control cabinets in railways – what are they used for and where are they applied?

Electrical equipment in the railway sector is present almost everywhere — from major power supply stations and trackside lines through to the trains themselves. Depending on the location and purpose, different types of solutions are used.

1. Power supply for railway networks and stations (high and medium voltage)

For a train to start moving, it requires a significant amount of electrical power. Power supply stations, known as traction substations, take electricity from the grid and convert it into parameters suitable for railway operation. In these locations, transformers and MV switchgear play a key role in the safe distribution of power, control functions and circuit protection against the effects of short circuits.

2. Control, automation and infrastructure (low voltage)

In addition to powering the trains themselves, the railway sector also requires energy to operate all station and trackside infrastructure. This is handled by LV switchgear, control cabinets and ICT cabinets, which supply and protect, among other things:

• Railway signalling and control systems – control cabinets managing the operation of signalling, points and level crossings.
• Station infrastructure – power supply for platform lighting, passenger information systems, air conditioning and electric point heating during winter.
• Telecommunications and monitoring – cabinets protecting sensitive communication modules, event recorders and diagnostic sensors.
• Train equipment (rolling stock) – electrical cabinets and enclosures installed in carriages and locomotives, controlling doors, air conditioning, lighting and traction systems.

What requirements should railway cabinets and switchgear meet?

Control cabinets and switchgear used in the railway sector must meet significantly higher requirements than standard solutions used in typical industrial installations. This results from the harsh conditions in which they operate.

• Resistance to vibration and mechanical shock – the continuous movement of trains generates vibration that may cause connections to loosen. All structural and contact elements must therefore remain exceptionally stable.
• Resistance to weather and corrosion – external cabinets and internal components must be protected against rain, snow, dust and temperature fluctuations.
• High conductivity and connection safety – in power supply systems, minimising energy losses and protecting contacts against overheating is essential.
• Modular design – this makes it easier to adapt the cabinet to a specific system and allows rapid servicing, diagnostics and future expansion.
• Compliance with railway standards – this ensures fire safety, build quality and the overall reliability of the installation.

Electris – precise assembly of switchgears and production of dedicated components for the railway sector

At Electris, we have been delivering advanced, dedicated copper and aluminium solutions for leaders in the power engineering, automation and rail transport sectors for more than 20 years. We offer comprehensive support — from technical documentation analysis and precision metalworking to protective coating and the assembly of equipment such as switchgear cabinets and control cabinets.

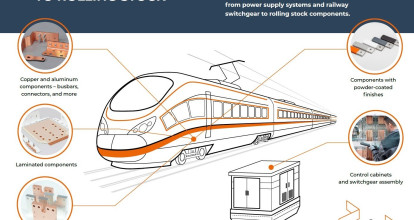

What distinguishes our solutions for the railway industry?

• Dedicated mechanical components – we manufacture busbars, laminated busbars, connectors, distribution blocks, as well as bent, turned and milled parts.
• Automated electroplating facility – Electris Coating Systems – we operate a modern, fully automated and environmentally responsible electroplating line. We offer professional silver plating, tin plating and nickel plating on copper and aluminium. This ensures the highest repeatability of protective coatings, delivering corrosion resistance and electrical contact conductivity in the most demanding conditions.

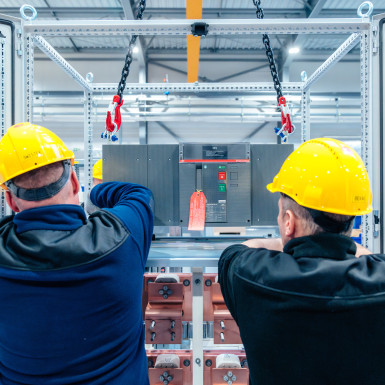

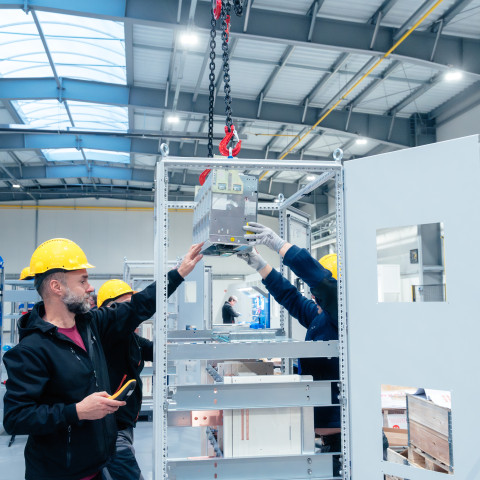

• Professional prefabrication of control and power distribution systems, supported by expertise in optimising switchgear design and functionality – we provide the full production process, from raw material to a finished set of subassemblies. Our control cabinet and switchgear prefabrication guarantees precision, compliance with customer specifications and full quality control at every stage.

Are you planning a new project in railway infrastructure, power supply stations or rolling stock? Or do you need dedicated copper and aluminium components?

Choose a proven partner. Write to us at sales@electris.pl and send us your request for quotation (RFQ) — we will analyse your documentation and prepare a dedicated quotation.
